177908-1
Manufacturer:
TE Connectivity
Mfr.Part #:
177908-1
Datasheet:
Description:

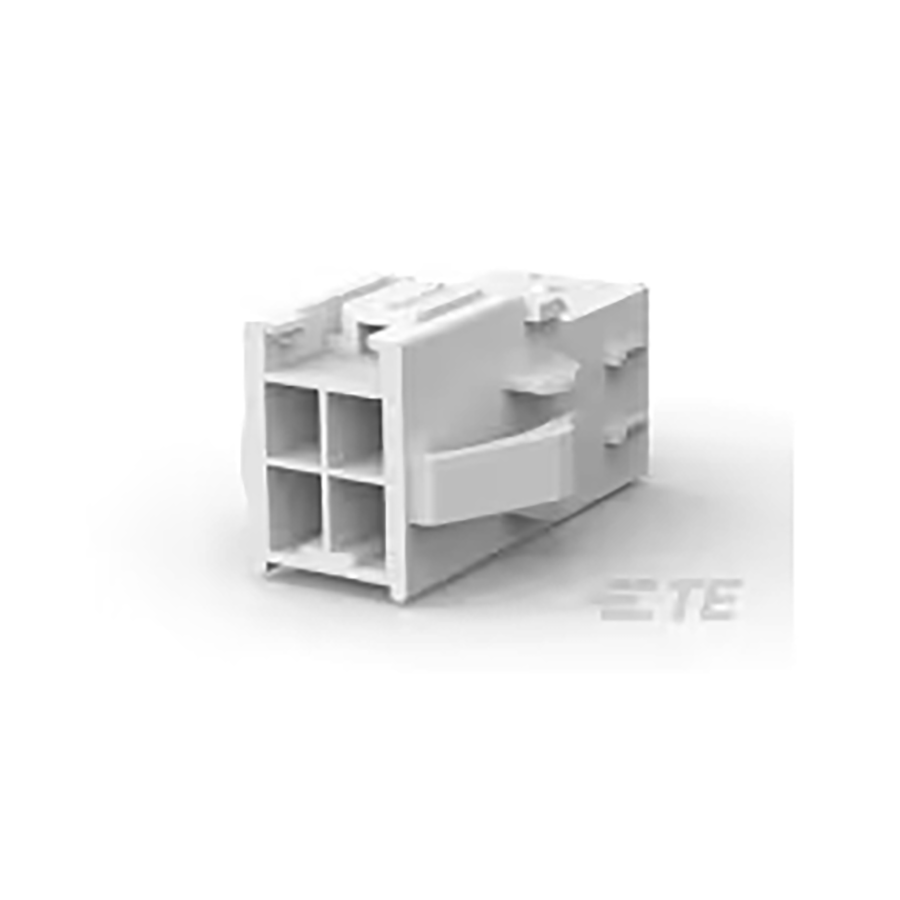

Headers and Wire Housings Plug-In Tab Number of Positions:4 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Width | 13.2 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 26.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | |
| Pitch | 3.96 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Tab |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 181 µm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 300 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 18 AWG |
| Housing Color | Natural |
| Panel Thickness | 1.9812 mm |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length |
Stock: 14
Distributors
pcbx
pcbxUnit Price$0.19747
Ext.Price$0.19747
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19747 | $0.19747 |
| 10 | $0.15792 | $1.57920 |
| 50 | $0.13832 | $6.91600 |
| 100 | $0.12115 | $12.11500 |
| 500 | $0.10583 | $52.91500 |
| 1000 | $0.10010 | $100.10000 |
